Product Description

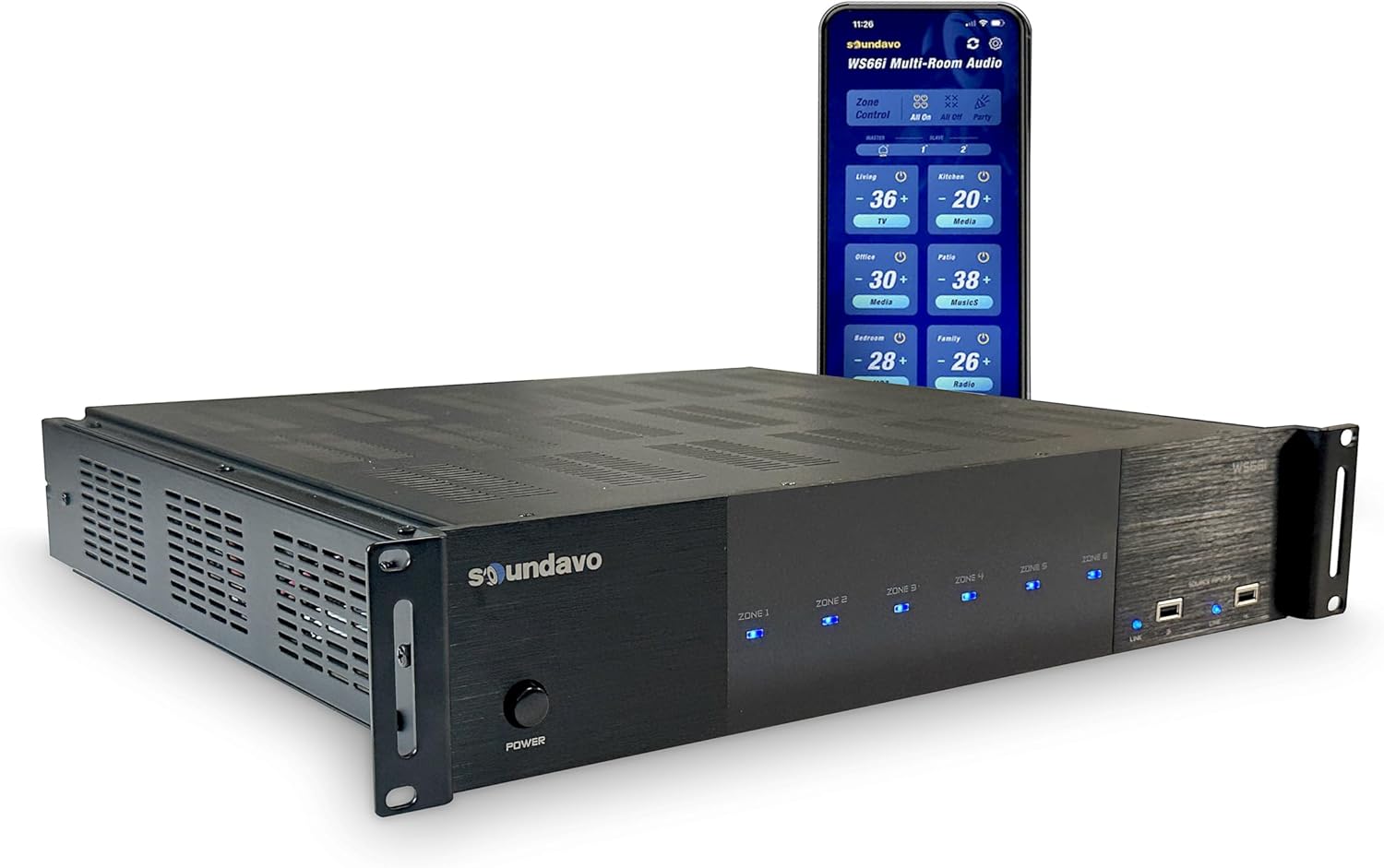

WS66i Whole-Home Audio Matrix Amplifier – 6 Sources x 6 Zones
The WS66i (AMP only) allow to you control by the supported APP without using the keypads or IR remote control. This whole-home audio system brings you the advanced Generation D technology, it is a functional, easy-to-install, highly compatible, expandable and used-friendly audio distribution system. With few simple steps to install, it provides up to W power by class D amplifier and distribute at most to 18 zones which all can be controlled by APP.
The WS66i comes with 6 input sources, it can be played Plug in to the input source 1, 2, 5, 6 via the RCA, Mini Jack and S/PDIF connector for your favor external audio devices (Media Player, TV, turntable, etc.). You also can use these 2 built-in music streamers that located at input source 3 & 4 to stream the music from the online music service (Spotify, Pandora, iHearRadio, Tidal, TuneIn, etc.). Each of these sources is available to every zone in your home, and can be selected simultaneously in any combination of zones. Newer devices like music streamers are typically controlled with their own app or by using the app for a music service (Spotify, Apple Music, Prime Music, etc.)
Easy Setup / Do-It-Yourselfer
The WS66i whole-home audio system is designed for the do-it-yourselfer, it can be installed and setup without hiring the professional technician.
(1) From a central location where you will install the WS66i matrix amplifier and your order equipment, run speaker cable to each speaker (and run Cat-5/6 cable to every location where you want to install a keypad (option for the WS66i-KIT version)
(2) Use the Ethernet cable to connect between the WS66i (LAN port) and your local network router
(3) Download the Free WS66i Control App on your cellphone/tablet, connect the same WiFi network connection as your network router
(4) Use the “Auto Search” Or “Manual” with enter IP address option, that’s it, the Control App will be connected and synced with the WS66i amplifier that allow you to control and stream the music from your cellphone/tablet.
External Audio Device & Built-In WiFi Music Streaming Inputs For Total 6 Sources x 6 Zones Audio Playback
Everyone in the house can play their own audio in different listen area, included stream from cellphone, play the external audio device, or TV audio
– 6 Line input sources, including 2 RCA Input (Source 1, 2), 2 Audio Streamer (Source 3, 4), 1 Mini Jack TRS Input (Source 5), and S/PDIF Input (Source 6)
– USB inputs for playing music files from USB sticks (Input Source 3, 4)
– Each zone Stereo/Mono output selectable
– Enable control over Ethernet
– PRE-AMP output on Zone1~6
– 12V DC trigger output to external device when the system is power on
– 12V DC mute trigger input from the external devices
– RJ45 Ethernet port for the wired connection to the local network
– Another RJ45 Ethernet expansion port for connecting with PC or other device
– RS-232 port allows 2-way communication with the Home Automation system
– Distribute 6 stereo audio signals to 6 rooms simultaneously (expandable up to 18 Zones by additional “M66-EXT” amplifier)
– Built in IR emitter
Customize your whole-house audio system with free WS66i Control App
The “Soundavo Player” App provide the short-cut link to many online music service (Spotify, Pandora, iHearRadio, Tidal, TuneIn, etc), allow you to select your favor music service and choose the music/song you would like to play on the WS66i amplifier.
Free Control App
Use our free Soundavo WS66i Control App installed on an iOS or Android device to make the input source selection, volume, EQ, balance, mute on any specific zone.
Output Power (Per Zone) 50W RMS x 2 per zone (at 4Ω) Output Power (Bridge Per Zone) 100W RMS mono (at 8Ω) S/N >85dB A WTD THD <0.1% Frequency Response 20Hz-20KHz Protection Function Overload, Short Circuit Network RJ45, Standard 10/100Mb Dimension 430mm x 89mm x 416 mm (WxHxD) Weight 27 lbs
✅【PLAY YOUR FAVOR MUSIC TO EVERY ROOM】The WS66i provides 50W x 2 amplification (per each zone) to 6 audio zones and hookup 12 speakers, enjoying the premium sound quality from a wide range of passive in-ceiling, in-wall or the outdoor speakers. Can be expanded to total 18 zones to works with our expansion unit (sold separately).
✅【STREAM MUSIC WITH IOS & ANDROID DEVICE】: Stream your favor music from the iPhone or Android tablet/smart phone, work with most popular streaming services, such as Spotify, Tidal, Pandora,TuneIn, DEEZER, iHeartRadio and more.
✅【FULL WIRELESS APP CONTROL】: Simply download the WS66i Control App in the Google Play and Apple App Store, the WS66i App is easy to setup and get the network connected within 60 seconds, allow you to do the Input Source Selection, Adjust Sound Volume, EQ, Mute and Customize Rename for any of the zones.
✅【INDIVIDUAL MUSIC STREAMERS BUILT-IN】: The WS66i provide 6 different inputs, and the 2 built-in streamers allow you to use one cellphone to do 2 different music App at the same time to any zones, or 2 (as multiple users) can use their cellphone to stream the different music to any specific zone. Means 6 zones can be played different audio, or all 6 zones played the same music as the “Party Mode” setup.
✅【SUPPORT AIRPLAY / DLNA / UPnP / NAS / USB】SUPPORT AIRPLAY / DLNA / UPnP / NAS / USB: Supports AirPlay/DLNA/UPnP, NAS and Local(on device) music play and a wide range of online music services.
✅【ADDITIONAL OUTPUT FOR EACH ZONE】: Each zone output from the WS66i has both “Speaker Out” and “Preamp Out”, the PREAMP OUT function allow the user to connect the external power amp + additional speakers (for more speaker connection), or the powered/active subwoofer speaker for louder sound level required.
✅【3 YEARS WARRANTY】:The WS66i carry our exclusive 3-year factory warranty.Our special technician will service the WS66i to the original owner under the warranty period.
